Drum Dryer with Low Energy Consumption

Email (info@sinoftm.com), we will reply to you within 24 hours

Drum Dryer

Applied Materials: Slag, gymsum, cement clinker, fly ash, cinder, kaolin, carbide slag, limestone, clay, river sand, quartz sand, etc. in metallurgy, construction materials, chemical engineering, coal washing, chemical fertilizer, mining, sand making line and other industrial fields.

Latest Quotation

What is Drum Dryer?

Drum Dryer or Single Drum Dryer is of strong adaptability to kind of materials. This equipment is the most commonly used drying equipment in cement plant for drying limestone, clay, coal powder and mixed materials and widely used in metallurgy, mining, electricity, chemical industry, and other sectors. As key equipment, drum dryer is known for its advantages such as simple and reliable operation, excellent dust prevention, good sealing effect, and convenient maintenance. Besides, this equipment can be set up as an independent unit as well as a complete system which is including dust collector, feeder, conveyor and other necessary machines.

Video of Drum Dryer

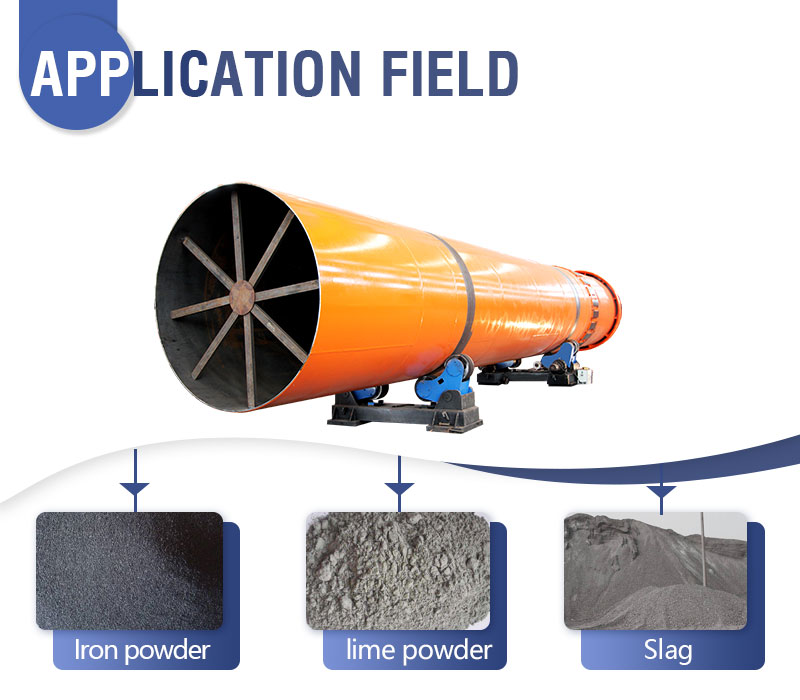

Applications of Single Drum Dryer

>>Slag, clay, bentonite, limestone, sand, silica sand, quartz sand, kaolin, etc. in building material industry;

>>Ore, metal powder, diatomite, Coal slime, coal, mixed fine coal, etc. in coal industry, chemical industry, mining, metallurgy and other industries;

>>Organic compound fertilizer, sludge, organic fertilizer, inorganic fertilizer, etc. in the fertilizer industry;

>>Other moist powder and granular materials of special requirements like all kinds of crystal, light calcium carbonate, active white earth, magnetic powder, graphite, inorganic mud, argil, lime slurry, mineral mud, phosphorus slag, red mud in aluminum plant, etc.

Drum Dryer Application.jpg

Single Cylinder Dryer Application

Structure and Advantageous Functions of the Drum Dryer

With the working principle of heat transfer and effect of the gravity, Drum Dryer is mainly composite with the drum, the lifting plate, the dryer roller, and the feeding box. The drum is set at a certain angle of the processing of the materials. The plates lift the wet powder or particles up and down so that the heat transfer is accomplished. The roller is the force for the drum to whirl around in order that the materials can get enough the heat of the inner wall. Fote Drum Dryer is of the following advantages:

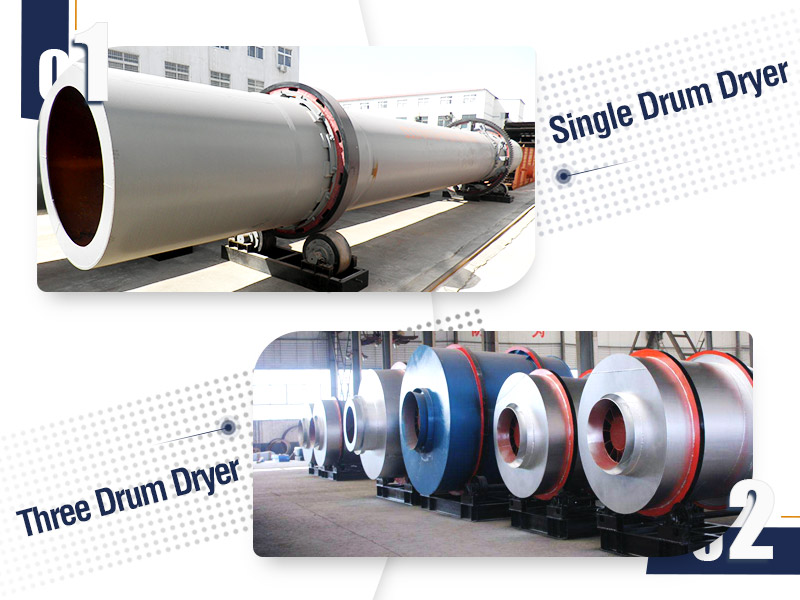

Difference Between Single Drum Dryer and Three Drum Dryer


Single Drum DryerThree Drum Dryer
Diameter of Outer Cylinder(m)1.2-3.62.5-3.6
Length(m)8.0-28.07.0-8.0
Volume(m³)9.0-285.016.63-81.38
Capacity(T/H)1.9-76.0

Yellow Sand:25-70

Slag: 20-65

There are types of drum dryer like single drum dryer, double drum one, three-drum one, and air-flow dryer, etc. Two of mostly used drying machines are compared here. Hope it arises a little help. From this table, it is clear that:

1> Three Drum Dryer takes less space but a better utilization of the heat;

2> Three Drum Dryer is of lower energy consumption than a single drum dryer when they take the same space;

3> Single Drum Dryer is of larger capacity and lower price;

4> Single Drum Dryer is easier operated and maintained.

Dryer Comparison.jpg

Attention Needed When Operating a Single Cylinder Dryer

Drum Dryer Case

Fote drum dryer in Morocco for silica sand with capacity of 50-65TPH, input humidity of 8-25% and output humidity of 1%.

Drum Dryer Site.jpg

As a professional drum dryer supplier, Fote Machinery has high quality drum dryer for sale. If you want to get the latest drum dryer price, please feel free to contact us. Thank you!

General Specification

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m15005001520.273-5%Lifting form85016.2×2.7×2.7
Φ1.5×17m1722.9718.2×2.7×2.7
Φ1.5×19m1925.6820.0×2.9×2.9
Φ1.8×21m18006502135.913-5%Lifting form85022.5×2.7×2.7
Φ1.8×23m2339.3324.5×2.9×2.9
Φ1.8×25m2542.7526.5×2.9×2.9
Φ2.2×21m22008002158.103-5%Lifting form850----
Φ2.2×23m2363.61
Φ2.2×25m2569.15
Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Φ1.2×8.0
9.0
1.9~2.4
Φ1.2×10
11.3
2.4~3.0
Φ1.5×12
21.2
4.5~5.7
Φ1.5×14
24.7
5.3~6.6
Φ1.5×15
26.5
5.7~7.1
Φ1.8×12
30.5
6.5~8.1
Φ1.8×14
35.6
7.6~9.5
Φ2.2×12
45.6
9.7~12.2
Φ2.2×14
53.2
11.4~14.2
Φ2.2×16
60.8
13.0~16.2
Φ2.4×14
63.3
13.5~16.9
Φ2.4×18
81.4
17.4~21.7
Φ2.4×20
90.4
19.3~24.1
Φ2.4×22
99.5
21.2~26.5
Φ2.6×24
127.4
27.2~34.0
Φ3.0×20
141.3
30.1~37.7
Φ3.0×25
176.6
37.7~47.1
Φ3.2×25
201
42.9~53.6
Φ3.6×28
285
60.8~76.0

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 cubage
(m³)
Φ1.5×15m150050020.27
Φ1.5×17m22.97
Φ1.5×19m25.68
Φ1.8×21m180065035.91
Φ1.8×23m39.33
Φ1.8×25m42.75
Φ2.2×21m220080058.10
Φ2.2×23m63.61
Φ2.2×25m69.15

Sludge Dryer

Moisture Reduction: 40-75%

Capacity: 1.9-76.0TPH

see more

Sawdust Dryer

Diameter×Length: Φ2.5×7-Φ3.6×8m

Capacity: 1-76TPH

see more

Rotary Dryer

Power: 7.5-75kw

Capacity: 1.9-76TPH

see more
/
