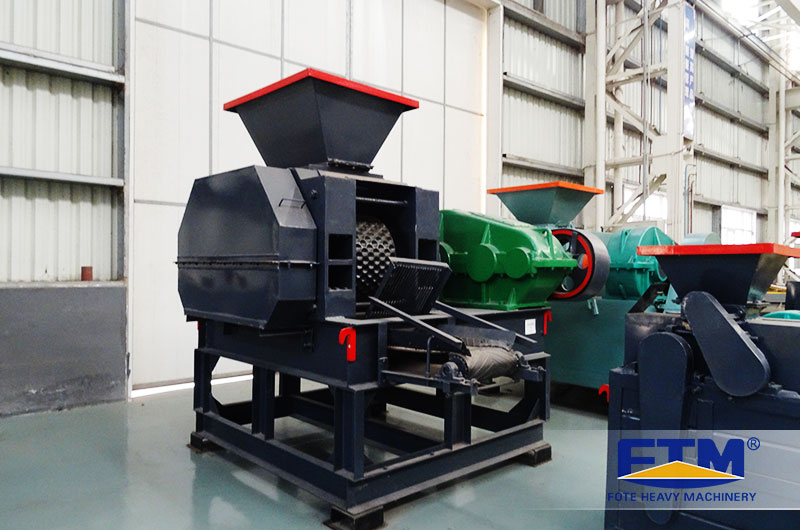

Quicklime briquetting machine

Email (quote@sinoftm.com), we will reply to you within 24 hours

Lime Briquetting Machine

Warranty Period: 1Year
Applied Materials: Lime powder briquetting machine is mainly used in coal, mining, metallurgy, refractory material, chemical industry, building materials, etc.

Latest Quotation

Introduction of Lime Briquetting Machine

Due to the processed materials, lime briquette machine is also called quicklime briquette machine and lime briquette press machine. The finished product can be used in lime calcination, blast furnace calcination, metallurgy, and other fields. The main purpose of quicklime press is to reduce dust, control unit weight, recycle and improve its transport characteristics.

Lime briquetting machine is mainly used to press powder materials like quicklime powder, dolomite powder, copper concentrate, chromium ore, manganese ore powder, laterite-nickel ore, lead and zinc scrap, bauxite, non-ferrous metal powder, refractory materials, ceramic materials, iron powder materials in steel plant, converter sludge, ferric oxide powder, iron sheet, aluminum skimmings, activated alumina, etc.

Lime Briquetting Machine Materials.jpg

Applications of Lime Briquetting Machine

Lime briquette machine is suitable for lime powder, silicon powder, chromium powder, refractory briquetting and other powdery substance which has no or low water content.

Lime briquette machine produced by Fote Machinery is mainly used for making the lime powder in coal or power plant into briquettes. The produced lime briquettes can be directly sent into the furnace for combustion or smelting, so as to improve the added value and realize resource recycling at the same time. It can be used to suppress, lime powder, quicklime, refractory materials, non-ferrous metal powder, coal powder, iron powder, coking coal, aluminum, iron, tin oxide, carbon powder, coal powder, slag, gypsum, tailings, sludge, kaolin, clay, activated carbon, coke breeze and other powdery materials. It is widely used in refractory material, power plants, metallurgical, chemical, energy, transportation, heating, and other industries.

Lime Briquetting Machine Application.jpg

Applications of Lime Briquetting Machine

Performance Advantages of Lime Briquetting Machine

Lime Briquetting Machine Advantage.jpg

Advantages of Lime Briquetting Machine

Working Principle of Lime Briquetting Machine

Lime briquette machine or double roller press is driven by gear and driven shaft. The hydraulic device is mounted on the back of the driven shaft assembly and driven by electromagnetic speed regulating motor. After the belt pulley and worm reducer run, the screw feeding device presses the material into the feeding port. When the screw feeder and press have the same pressure, the feeding pressure remains constant, thus stabilizing the packing quality. If there is too much feeding, the feeder will overload. If there is too little feed, the feeder will not form a ball. Therefore, the skilled operation technology has become the key conditions of pressure ball.

Lime Briquetting Machine Working Principle.jpg

Operation Guidance of Lime Briquetting Machine

1.The selection of binder: the choice of binder has wide source and low price. A good effect is an important issue, which is directly related with the hardness and density of the balls as well as the product quality and production cost.

2.The uniform degree of materials: the grain size and hardness of the material will affect the pressing effect and work efficiency of lime briquetting machine, so the uniformity of material will have a direct impact on the quality of the product. Before entering the lime briquetting machine, the particle size of materials must be inspected. When reaching the appropriate size, they can be put into the machine.

3.Moisture content and drying process: if the material is too wet or too dry to be placed directly into the equipment without any treatment, problems such as adhesion or ball breakage may occur. Therefore, the material should be kept at a certain humidity, not too dry or too wet.

Lime Briquetting Machine .jpg

General Specification

Model Roll diameter
(mm)
Roll width
(mm)
Total pressure
(t)
Main motor power
(kw)
Output
(t)
Weight
(t)
GY520-150 520 196 150 55 2.2-3.5 13
GY650-220 650 200 220 110 4-6.5 19.2
GY750-300 750 280 300 185 6-8.5 34
GY1000-350 1000 440 350 250 10-15 50.8
GY1000-450 1000 504 450 280 14-17 58.5
GY1000-500 1000 504 500 315 15-20 58.5
GYS1000-500 1000 600 500 280 17-21 56.5
GY1000-540 1000 900 540 185Kw×2 30-35 60
GY1200-800 1200 900 800 280Kw×2 40 110
GY1400-1000 1400 1000 1000 400Kw×2 50 156
Note: Data may change for the improving technology; we reserve the right of changing without notice; Machine performance may vary depending on application; for more details, please chat online with Fote engineers.
Model Roll diameter
(mm)
Roll width
(mm)
Total pressure
(t)
GY520-150 520 196 150
GY650-220 650 200 220
GY750-300 750 280 300
GY1000-350 1000 440 350
GY1000-450 1000 504 450
GY1000-500 1000 504 500
GYS1000-500 1000 600 500
GY1000-540 1000 900 540
GY1200-800 1200 900 800
GY1400-1000 1400 1000 1000
Note: Data may change for the improving technology; we reserve the right of changing without notice; Machine performance may vary depending on application; for more details, please chat online with Fote engineers.
