Dry Rod mill and Wet Rod Mill for Your Choice

Email (quote@sinoftm.com), we will reply to you within 24 hours

Rod Mill

Applied Materials:Quartz stone, iron ore, copper ore, gold ore, construction waste, cement clinker, pyrrhotite, hematite, limonite, etc. Mainly used to smash all kinds of ores and raw materials.

Latest Quotation

The Introduction of Rod Mill

Rod mill adopts steel bars as the grinding medium in the cylinder, which is mainly used to smash all kinds of ores and raw materials, particularly a variety of brittle materials. It is commonly used in ore dressing industry, machinery industry and chemical industry and other fields. Rod mill has many advantages such as high yield and uniform discharging size, which is suitable for different hardness of ores. Rod mill has dry and wet types to be chosen. Customers can choose the appropriate type according to your actual conditions. Due to its grinding medium, rod mill is also called grinding rod mill and rod grinding mill.

Rod Mill in Ore Processing Plant

The Features of Rod Grinding Mill

During the grinding process of rod mill, the grinding medium and ore are line contact, thus it has a certain selective grinding effect. The particle size of the product is more uniform with low grinding rate. For coarse grinding, the processing amount of rod mill is greater than the ball mill with the same specification, and vice versa.

Rod Mill.jpg

FTM Rod Mill

Applications of Rod Grinding Mill

Rod Mill Application.jpg

The Applications of Rod Mill

Rod Mill Working Principle

The rod mill is driven by the motor through the reducer and the big gear around it or by the low-speed synchronous motor directly through the big gear around the rod mill to drive the cylinder rotation. The cylinder is equipped with appropriate grinding medium-steel rods. Under the action of centrifugal force and friction , grinding medium is lifted to a certain height and fall. The grinding material continuously entered the cylinder body by the feeding device, crushed by the grinding medium, and discharged from the machine by the overflow and continuous feeding force, so as to carry out the next stage of operation.

Rod Mill Working Principle.gif

The Working Principle of Rod Mill

The Manufacturer of Rod Mill-Fote Machinery

Fote Machinery has been specialized in the production of mineral processing equipment for several decades. Both the production technology and service are internationally welcome and recognized. The rod mill is designed with appropriate grinding body and actual grinding materials to improve the quality and output. Most importantly, the rod mill price is rather reasonable. Fote Manufacturers sell on their own, with no intermediary business, which will save time and effort, and assure more reasonable price. You can make an online consultation on discount quotation at any time for more details and equipment information. At the same time, welcome to visit the factory.

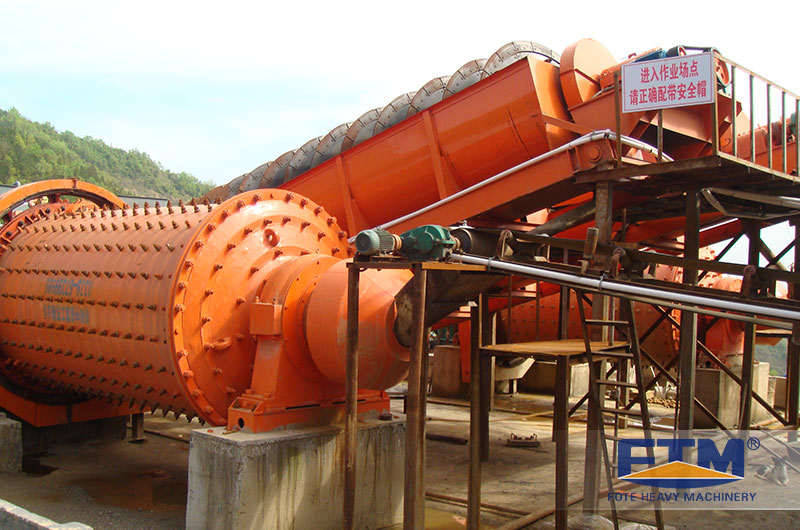

Customer Case

Rod Mill Site.jpg

Rod Mill Site.jpg

Rod Mill Site.jpg

General Specification

Model
Shell Specifications (mm)
Shell rotation speed
(r/min)
Feeding size
(mm)
Discharging size
(mm)
Processing capacity
(t/h)
Power
(kw)
Total weight
(t)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5

5.9

MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149
Model
Shell Specifications (mm)
Feeding size
(mm)
Processing capacity
(t/h)
Diameter Length
MBS0918 900 1800 ≤25 0.62-3.2
MBS0924 900 2400 ≤25 0.81-4.3
MBS1224 1200 2400 ≤25 1.1-4.9
MBS1530 1500 3000 ≤25 2.4-7.5
MBS1830 1830 3000 ≤25 4.8-11.6
MBS2130 2100 3000 ≤25 14-35
MBS2136 2100 3600 ≤25 19-43
MBS2430 2400 3000 ≤50 25-65
MBS2736 2700 3600 ≤50 32-86
MBS2740 2700 4000 ≤50 32-92
MBS3245 3200 4500 ≤50 64-180
