Magnetic Separator with High Efficiency

Email (info@sinoftm.com), we will reply to you within 24 hours

Magnetic Separator

Applied Materials:Wet magnetic separation of magnetite, pyrrhotite, roasting ore, ilmenite, coal, non-metallic minerals, building materials, limonite, hematite, manganese siderite ore, ilmenite, wolframite, manganese ore, metallurgical manganese ore, manganese oxide, iron ore, kaolin, rare earth, etc.

Latest Quotation

Introduction of Magnetic Separator

Magnetic separator can separate magnetite, limonite, hematite, manganese siderite ore, ilmenite, wolframite, manganese ore, metallurgical manganese ore, manganese oxide, iron ore, kaolin, rare earth and so on. The magnetic separation process is realized by the magnetic and mechanical force on the particles in the magnetic field. Different magnetic mineral grains move along a different trajectory, thus sorting into two or more separate ore dressing products.

Features of Magnetic Separator

Magnetic Separator.jpg

The Classification of Magnetic Separator

Magnetic separator can be divided into wet magnetic separator and dry magnetic separator. Wet magnetic separator is the more commonly used separator in ore dressing plants, which is applicable to separate strong magnetic minerals.

Magnetic Separator.jpg

Applications of Magnetic Separator Equipment

Magnetic separator is suitable for materials with magnetic difference, which is widely used for resource recovery, timber industry, mining industry, ceramics industry, chemical industry, food and other workshops. Magnetic separator is suitable for wet separating of materials with below 3mm particle size, such as magnetite, pyrrhotite, roasted ore, ilmenite and other materials. It is also used for iron removing operation of coal, non-metallic minerals, building materials and other materials, which is one of the most extensive and high versatility devices .

Magnetic Separator Application.jpg

Applications of Magnetic Separator

Working Principle of Magnetic Separator

After the slurry flows into the tank through the ore tank, the ore particles enter the tank feeding area in a loose state under the action of the water flow of the water spray pipe. Under the action of the magnetic field, the magnetic ore particles are magnetically aggregated to form a "magnet" or "magnetic flux".
The "magnet" or "magnetic flux" is subjected to magnetic force in the slurry, moving toward the magnetic pole, and being adsorbed in the cylinder. Because the polarities of the magnetic poles are alternately arranged along the direction of rotation of the cylinder and are fixed at the time of operation, when the "magnet" or "magnetic flux" rotates with the cylinder, magnetic agitation occurs due to the alternating magnetic poles and is mixed.
The non-magnetic minerals such as gangue in the "magnet" or "magnetic flux" fall off during the flipping, and the "magnet" or "magnetic lotus" that is finally attracted to the surface of the cylinder is concentrate. The concentrate is transferred to the weakest part of the magnetic system edge and is discharged into the concentrate tank under the action of the flushing water jet discharged from the unloading water pipe.
In the case of a full magnetic roller, the unloading is carried out by means of a brush roller. Non-magnetic or weakly magnetic minerals are left in the slurry with the slurry exiting the trough, which is the tailings.

Magnetic Separator.jpg

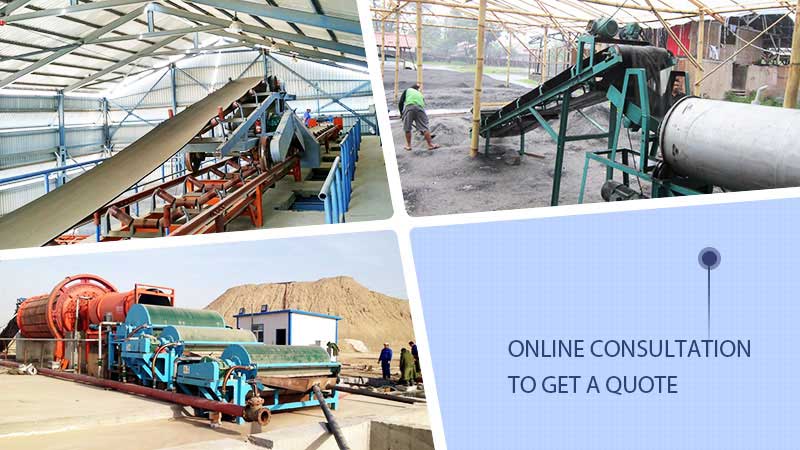

Customer Case

Magnetic Separator Site.jpg

Magnetic Separator Manufacturer

Fote Machinery is located in Zhengzhou, China, which is engaged in 20 years of producing large-scale magnetic separating machines. In addition to magnetic drum separator, we also produce iron ore magnetic separator. With reasonable magnetic separator price, strict quality and top services, we have won the praise from a majority of customers.

General Specification

Model Shell diameter
(mm)
Shell lenght
(mm)
Shell rotation
speed(r/min)
Feeding size
(mm)
Processing capacoty
(t/h)
Power(kw)
CTB6012 600 1200 <35 2-0 10-20 1.5
CTB6018 600 1800 <35 2-0 15-30 2.2
CTB7518 750 1800 <35 2-0 20-45 2.2
CTB9018 900 1800 <35 3-0 40-60 3
CTB9021 900 2100 <35 3-0 45-60 3
CTB9024 900 2400 <28 3-0 45-70 4
CTB1018 1050 1800 <20 3-0 50-75 5.5
CTB1021 1050 2100 <20 3-0 50-100 5.5
CTB1024 1050 2400 <20 3-0 60-120 5.5
CTB1218 1200 1800 <18 3-0 80-140 5.5
CTB1224 1200 2400 <18 3-0 85-180 7.5
CTB1230 1200 3000 <18 3-0 100-180 7.5
CTB1530 1500 3000 <14 3-0 170-280 11
Model Feeding size
(mm)
Processing capacity
(t/h)
CTB6012 2-0 10-20
CTB6018 2-0 15-30
CTB7518 2-0 20-45
CTB9018 3-0 40-60
CTB9021 3-0 45-60
CTB9024 3-0 45-70
CTB1018 3-0 50-75
CTB1021 3-0 50-100
CTB1024 3-0 60-120
CTB1218 3-0 80-140
CTB1224 3-0 85-180
CTB1230 3-0 100-180
CTB1530 3-0 170-280
