Roatry Kaolin Dryer

Email (quote@sinoftm.com), we will reply to you within 24 hours

Kaolin Dryer

Applied Materials: Kaolin, coal, aluminum, iron oxide skin, slag, gypsum, clay, activated carbon, quartz sand and so on.
Over 200 Exported Countries: Uganda, India, Kenya, Netherlands, Zimbabwe, United States, United Arab Emirates, Mexico, Malaysia, etc.

Latest Quotation

What is Kaolin Dryer?

Kaolin is the mineral raw materials required in dozens of industries such as papermaking, ceramics, rubber, chemical industry, coatings, pharmacy and national defense. Kaolin is commonly used in papermaking industry. Its power consumption is only 30% of the parallel products. Coal consumption is only 50%, and the index of material is higher than the nationwide standard after drying process.

Kaolin dryer is otherwise known as kaolin drying machine or kaolin drum dryer, which is not only applicable for granular materials, but also used for drying viscous, pasty materials or materials with higher water content and special requirements. The covers for the two ends of kaolin dryer host are highly sealed, which is energy saving and environmental protection.

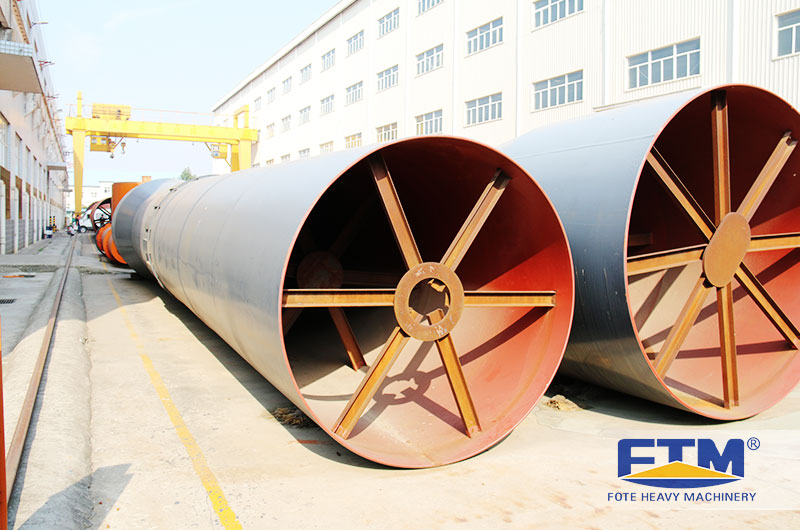

Kaolin Dryer in Fote Factory.jpg

Kaolin Dryer in Fote Factory

Applications of Kaolin Dryer

Kaolin drying machine is utilized extensively for drying concentrate powder, slag, limestone, coal, slag, clay, kaolin in and other materials in building materials, metallurgy, chemical industry, cement industry, etc. It is especially suitable for kaolin, clay and bentonite. After nearly 25 years of development, the new generation of kaolin dryer is energy saving and consumption reducing.

Kaolin Dryer Applications.jpg

Application of Kaolin Dryer

How Kaolin Rotary Dryer Works?

As key equipment in kaolin drying process, kaolin drying machine can be installed as a standard alone device as well as a complete system with other machines like dust collecting system, feeding machine, conveyor, mixer, etc.

The kaolin dryer is installed at a certain angle. When the kaolin rotary drying machine works, wet kaolin is introduced into the drum and is lifted up to the top of the interior by the lifting plates inside. During the falling, the moist material is crushed by the blades which are rolling at a high speed. This process is repeated until the wet kaolin is dried and moved to the exit of the cylinder under the effect of the gravity. At the same time, scorching wind from the direct-fired hot-blast furnace makes the heat transformation realized and blows the dried kaolin out into the conveyor. Thus, the drying process is completed.

Kaolin Dryer Working Principle.gif

Working Principle of Kaolin Dryer

Advantages of Fote Kaolin Dryer Machine

Kaolin Dryer

Fote Kaolin Dryer

Environmental Protection Value of the Kaolin Drum Dryer

>>> Equipped with pulse dust collector, the kaolin dryer can further reduce the dust content of the exhaust;

>>> Well-sealed host of the drum, the electricity consumption is 30% of parallel machines and the coal consumption only 50%, which is energy-saving and environmental protected.

Classic Case of Kaolin Dryer

In Malaysia, Φ1.5x12 kaolin dryer is used in kaolin wet processing line with a capacity of 5TPH. Kaolin is dried from 30% to less than 1%, which is directly used for papermaking and ceramics production. This customer was introduced by his friend who had bought Fote rotary dryer before. After contact with him and got details of the working environment and his project, Fote engineer offered him two solutions with capacity from 2.4-5.7TPH. Finally, he chose the kaolin dryer of ModelΦ1.5x12. This rotary dryer machine has worked well for him for about two years according to the feedback from him. Besides, Fote engineers assure him a reliable after-service.

Fote Kaolin Dryer Customer Site.jpg

Fote Kaolin Dryer Customer Site

Kaolin Dryer Manufacturer

Fote Machinery is an experienced kaolin dryer supplier with an about 40-year history. Fote has introduced advanced technology from Germany, America, Japan and other countries and has established its own production series. We have types of high-quality kaolin dryer machine for sale to meet the requirements of different sizes of plants. When it comes to kaolin dryer price, we have the greatest affordable price in the same industry. Free consultant and 24-hour service are offered here. You can chat online with our skilled sales or leave an online message. We will contact you within 24 hours and offer you customized solutions based on your need.

General Specification

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m15005001520.273-5%Lifting form85016.2×2.7×2.7
Φ1.5×17m1722.9718.2×2.7×2.7
Φ1.5×19m1925.6820.0×2.9×2.9
Φ1.8×21m18006502135.913-5%Lifting form85022.5×2.7×2.7
Φ1.8×23m2339.3324.5×2.9×2.9
Φ1.8×25m2542.7526.5×2.9×2.9
Φ2.2×21m22008002158.103-5%Lifting form850----
Φ2.2×23m2363.61
Φ2.2×25m2569.15
Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Φ1.2×8.0
9.0
1.9~2.4
Φ1.2×10
11.3
2.4~3.0
Φ1.5×12
21.2
4.5~5.7
Φ1.5×14
24.7
5.3~6.6
Φ1.5×15
26.5
5.7~7.1
Φ1.8×12
30.5
6.5~8.1
Φ1.8×14
35.6
7.6~9.5
Φ2.2×12
45.6
9.7~12.2
Φ2.2×14
53.2
11.4~14.2
Φ2.2×16
60.8
13.0~16.2
Φ2.4×14
63.3
13.5~16.9
Φ2.4×18
81.4
17.4~21.7
Φ2.4×20
90.4
19.3~24.1
Φ2.4×22
99.5
21.2~26.5
Φ2.6×24
127.4
27.2~34.0
Φ3.0×20
141.3
30.1~37.7
Φ3.0×25
176.6
37.7~47.1
Φ3.2×25
201
42.9~53.6
Φ3.6×28
285
60.8~76.0

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 cubage
(m³)
Φ1.5×15m150050020.27
Φ1.5×17m22.97
Φ1.5×19m25.68
Φ1.8×21m180065035.91
Φ1.8×23m39.33
Φ1.8×25m42.75
Φ2.2×21m220080058.10
Φ2.2×23m63.61
Φ2.2×25m69.15
