Advanced Ore Powder Dryer

Email (quote@sinoftm.com), we will reply to you within 24 hours

Ore Powder Dryer

Applied Materials: Ore powder, sand, slag, limestone, , metal powder, quartz sand, gypsum powder, clay, coal slime, coal powder, sawdust, etc.
Over 200 Exported Conutries: Southe Africa, Congo, Indonesia, Egypt, the United Arab Emirates, Saudi Arab, Iran, etc.

Latest Quotation

What is Ore Powder Dryer?

Fote Machinery is a specialist in the production of various ore powder dryers, including manganese ore powder dryer, nickel ore powder dryer, as well as for drying powder or particle of cobalt, tin, chromium, gold and mercury, etc. This drying equipment is indispensable in the rare metal ore dressing operation. FTM fine ore powder dryer is a new type adopting indirect hot-blast stove technology (electricity as the heat source also available), in case that the fine ore powder is blended in sulphide and its hazardous materials.

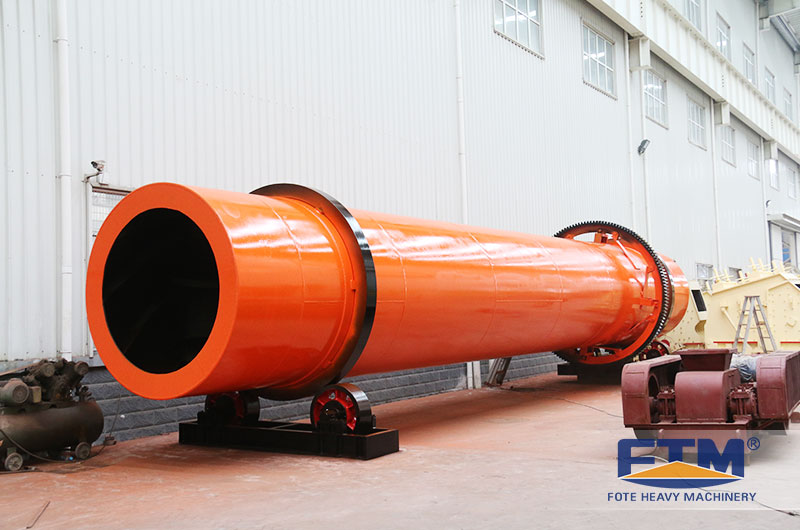

Ore Powder Dryer.jpg

Ore Powder Dryer

Applications of Ore Powder Dryer Machine

Ore powder dryer or mineral powder dryer is widely used in building materials, metallurgy, mineral processing, chemical industry, cement and other industries, which is mainly used for drying wet and heavy materials such as mineral powder, slag, limestone, clay, sand, quartz sand, grain slag, etc. Fote ore powder dryer can also be used for drying metal powder, so it can be called metal powder dryer.

Ore Powder Dryer Applications.jpg

Examples of Ore Powder Applications

Advantages of Fote Ore Powder Drying Machine

Working Principle of Ore Powder Dryer

Ore powder drying machine adopts high-temperature and rapid drying technology, which is a successful combination of hot-air slot rotary-plate drying machine and air-flow dryer. Wet powder is thrown up and impacted into pieces by the high-speed rolling blades. Meanwhile, well decentralized powder gets adequate and effective contact with the scorching wind. Thus, the heat transformation is realized. In addition, there is cleaning device on the inner wall of the dryer to clean the lumpy material and those are stuck on the inner wall, which can expeditiously avoid blocking.

Ore Powder Dryer Working Process.gif

Working Principle of Ore Powder Dryer

How to Maintain Ore Powder Dryer?

Due to the working environment and often process corrosive materials, ore powder dryer needs good antiseptic protection. Two frequently used methods to protect the drying machine from corrosion.

1. Electrostatic coating. It is a means of spraying a new type powder on the cylinder, which is safer and causes less environmental pollution. This new powder is of the same anticorrosion as stainless steel. Besides, this powder is excellently resisted from outdoor weather and heat. Therefore, stainless steel can be replaced with plain carbon steel in dryer production, which has lower cost.

2. Deactivation and phosphorization. These two methods are grouped as a one-time process through electrical and electrochemical reactions. The stained steel layer can be recovered to its original color. A dense anti-rust layer is formed by phosphorization at the same time. Easy operation and cost savings make this method the most welcome and commonly used one.

Classic Case of Ore Powder Dryer

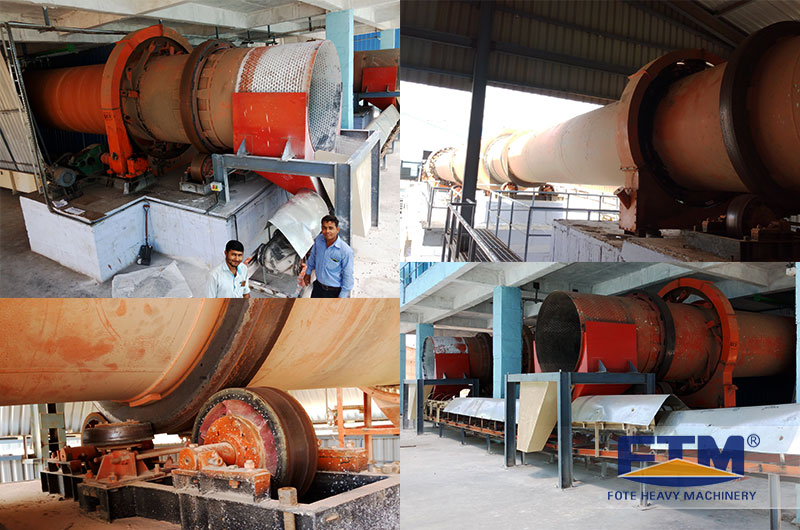

Fote ore powder dryer in India for drying zinc oxide with a capacity of 110 TPH, the input humidity of 30% and the output humidity of 3%. This ore powder dryer is used in the zin ore processing plant with a flotation method. This Fote Indian customer found a video about zin ore dressing and searched our web on Google. After comparison with other companies, he decided to leave a message online. Fote engineer contacted him and supplied three customized solutions within 24 hours after the customer replied to him. The goods were delivered to the Port of Kolkata and installed with the on-site guidance of Fote engineers. So far we have received high praise on this solution especially this ore powder dryer.


Fote Ore Powder Dryer at Customer Site

Ore Powder Dryer Manufacturer

For about 40 years, Fote has worked itself so hard that a series of rotary dryers have been formed. In addition to professional consultation, Fote engineers offer customized solutions according to your requirements including the material, processing environment, etc. Two-week delivery, timely emergency solutions and site installation guidance are available. You can get the latest factory quotation by chatting online with our sales, leaving message or email at quote@sinoftm.com.

General Specification

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m15005001520.273-5%Lifting form85016.2×2.7×2.7
Φ1.5×17m1722.9718.2×2.7×2.7
Φ1.5×19m1925.6820.0×2.9×2.9
Φ1.8×21m18006502135.913-5%Lifting form85022.5×2.7×2.7
Φ1.8×23m2339.3324.5×2.9×2.9
Φ1.8×25m2542.7526.5×2.9×2.9
Φ2.2×21m22008002158.103-5%Lifting form850----
Φ2.2×23m2363.61
Φ2.2×25m2569.15
Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Φ1.2×8.0
9.0
1.9~2.4
Φ1.2×10
11.3
2.4~3.0
Φ1.5×12
21.2
4.5~5.7
Φ1.5×14
24.7
5.3~6.6
Φ1.5×15
26.5
5.7~7.1
Φ1.8×12
30.5
6.5~8.1
Φ1.8×14
35.6
7.6~9.5
Φ2.2×12
45.6
9.7~12.2
Φ2.2×14
53.2
11.4~14.2
Φ2.2×16
60.8
13.0~16.2
Φ2.4×14
63.3
13.5~16.9
Φ2.4×18
81.4
17.4~21.7
Φ2.4×20
90.4
19.3~24.1
Φ2.4×22
99.5
21.2~26.5
Φ2.6×24
127.4
27.2~34.0
Φ3.0×20
141.3
30.1~37.7
Φ3.0×25
176.6
37.7~47.1
Φ3.2×25
201
42.9~53.6
Φ3.6×28
285
60.8~76.0

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 cubage
(m³)
Φ1.5×15m150050020.27
Φ1.5×17m22.97
Φ1.5×19m25.68
Φ1.8×21m180065035.91
Φ1.8×23m39.33
Φ1.8×25m42.75
Φ2.2×21m220080058.10
Φ2.2×23m63.61
Φ2.2×25m69.15
